ah!60
ah!60 is a groundbreaking exterior opening system with unmatched thermal and acoustic performance (up to Minergie-P and Passivhaus), ideal for very cold climates. It also stands out as an intrusion prevention solutiion for high demanding security specifications (RC4/WK4). It offers great flexibility in the modular composition of openings, including opening corner solutions, pocket sliding configurations, curved layouts, tilted spans and retractable mosquito nets.
The alternatives come in a wide range of formats such as sliding, sash and skylight opening units. It allows for the introduction of a wide range of accessories, including heated glass, and it can be completely automated. ah!60 is a system that allows double glazed surface areas of up to 29m2, or triple glazed of up to 19m2. Both options use 20mm vertical profiles.
USE
external partitions
offers unmatched acoustic
and thermal performance
ideal for very cold climates
high demanding security specs

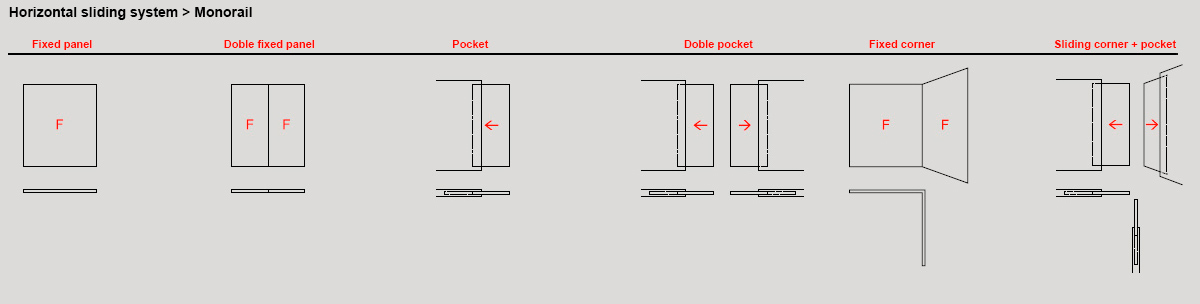

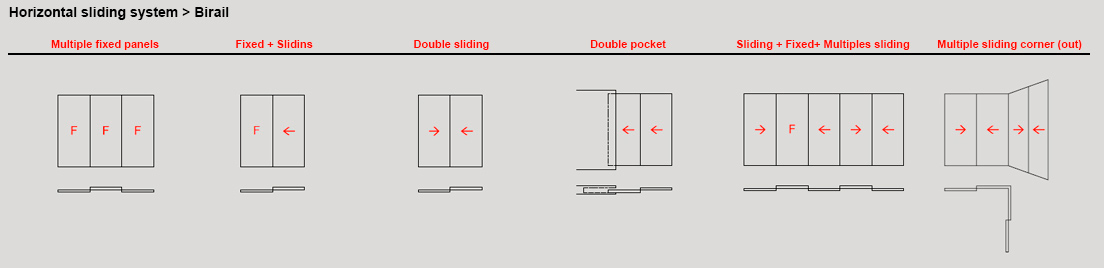

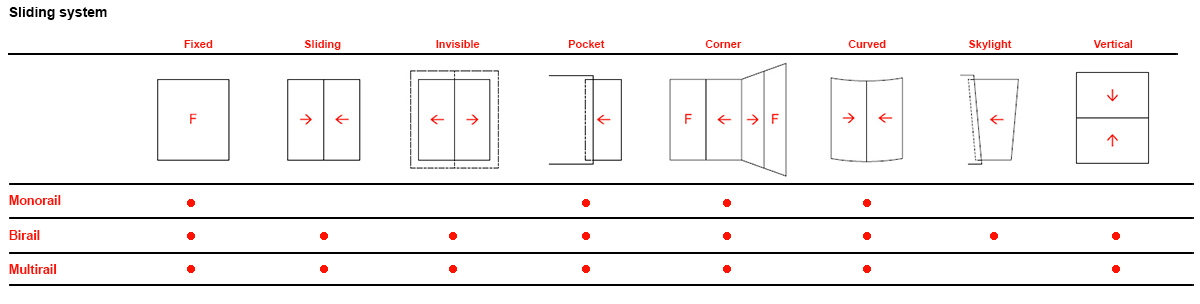

OPENING SOLUTIONS
sliding
MAXIMUM AREA PANEL
29m2
MAXIMUM NO. RAILS
limitless
SOUND INSULATION
44dB
LOCKS
key lock
multi point locking system
| Main dimensions | ||
|---|---|---|
| Vertical profile | 20mm | |
| Max. leaf height | 9000mm | |
| Max. leaf width | 9000mm | |
| Max. weight | Up to 1000 Kg./glass panel | |
| Max. glazed area | Double glazing | up to 29 m2 |
| Triple glazing | up to 19 m2 | |
| Glass thickness | 60mm | |
| Performance | |
|---|---|
| Light transmission | up to 98% |
| Thermal coefficient | Uw=0.8W/m2.K (Ug=0.6W/m2.K |
| Security | RC4 /WK4 |
| Sound insulation | 44dB |
| Water tightness | Class E900 |
| Air tightness | Class 4 |
| Wind tightness | Class C5 |
| Construction | |
|---|---|
| Finishes | All panoramah! System series guarantee that the following finishes are carried out by duly certified entities, according to QUALICOAT and QUALANOD directives: Lacquered RAL, Lacquered PVDS, Anodized, Satin, Polished and Repellent. |
| Add-ons | insect screens / balustrade / integrated blind system / heated glass / intrusion detectors |
| Motorisation | Our motorisation system can be adapted to all sliding or opening systems allowing a full integration with minimum interference architectural design with a simplified and very quiet opening. |

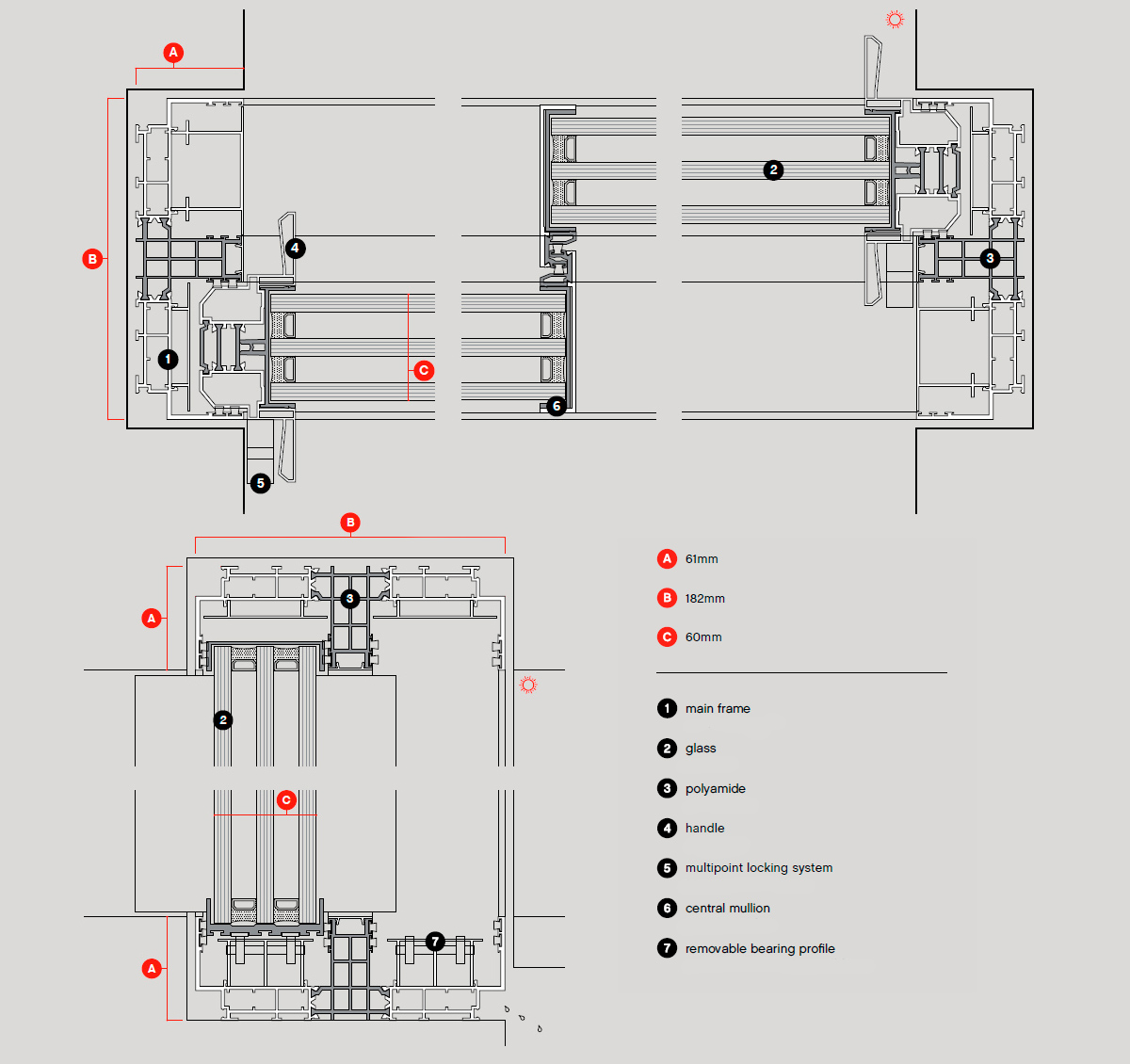

Sliding birail common sections (scale 1:3)
