ah!26
ah!26 is a very light, easily operated sliding exterior system with good thermal and acoustic performance, suited for temperate climates. It enables the inclusion of some features such as manual or automated: corner opening, sliding into a wall pocket, internal mosquito nets and exterior shutters.
This double-glazed product can achieve surfaces of up to 6m2 and uses 18mm vertical profiles.
USE
external partitions
buildings in moderate climates

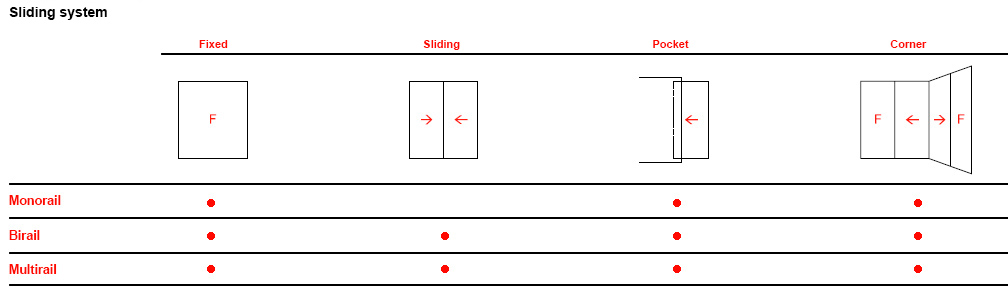

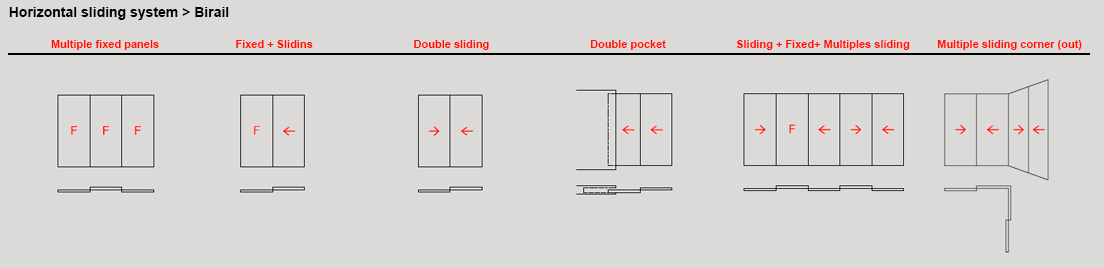

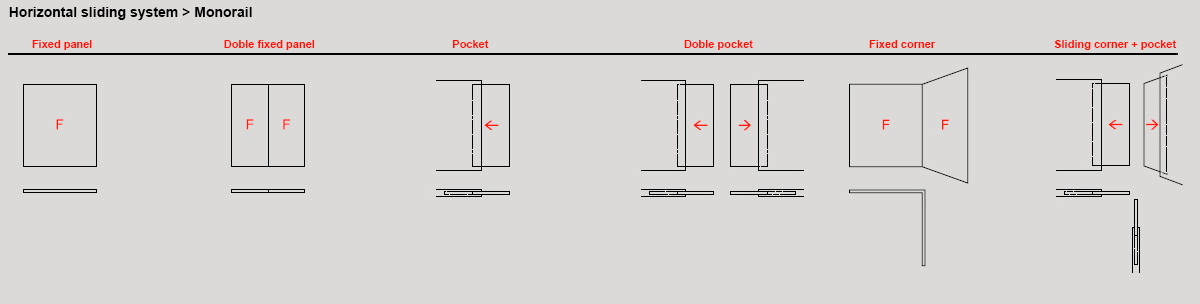

OPENING SOLUTIONS
sliding
fixed
corner
pocket
MAXIMUM AREA PANEL
6m2
MAXIMUM NO. RAILS
limitless
SOUND INSULATION
33dB
LOCKS
one point latch
| Main dimensions | ||
|---|---|---|
| Vertical profile | 18mm | |
| Max. leaf height | 3000mm | |
| Max. leaf width | 3000mm | |
| Max. weight | Up to 250 Kg./glass panel | |
| Max.glazed area | double glazing | 6 m2 |
| triple glazing | n.a | |
| Glass thickness | 26mm | |
| Performance | |
|---|---|
| Light transmission | up to 98% |
| Termal coefficient | Uw=2.4W/m2.K (Ug=1.6W/m2.K |
| Security | RC2 /WK2 |
| Sound insulation | 33dB |
| Water tightness | Class 3A |
| Air tightness | Class 2 |
| Wind tightness | Class A3 |
| Construction | |
|---|---|
| Finishes | All panoramah! System series guarantee that the following finishes are carried out by duly certified entities, according to QUALICOAT and QUALANOD directives: Lacquered RAL, Lacquered PVDS, Anodized, Satin, Polished and Repellent. |
| Add-ons | insect screens / balustrade / integrated blind system / heated glass / intrusion detectors |
| Motorisation | Our motorisation system can be adapted to all sliding or opening systems allowing a full integration with minimum interference architectural design with a simplified and very quiet opening. |

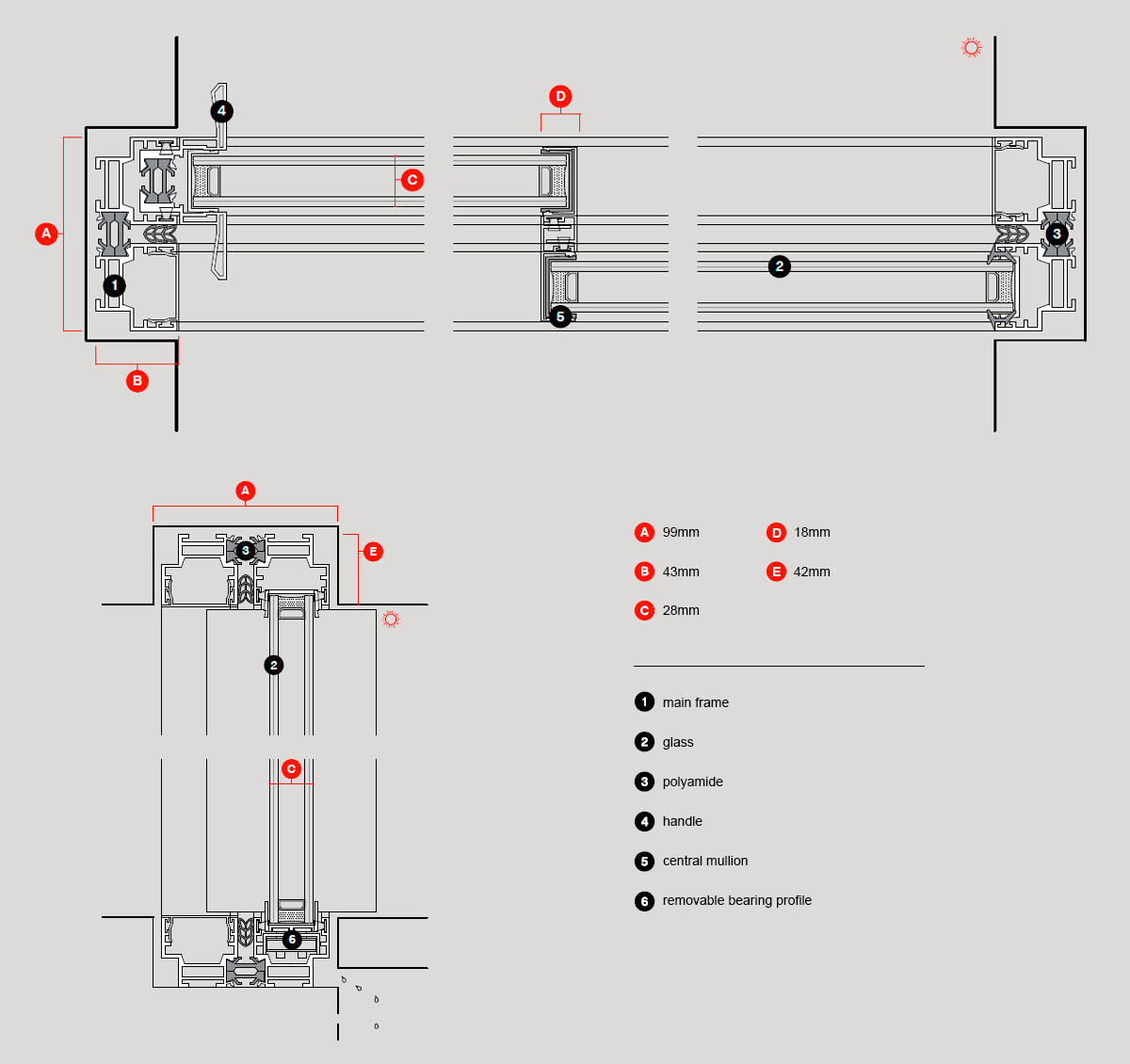

Sliding birail common sections (scale 1:3)
